A molded case circuit breaker that meets IEC 60947-2 may still not be accepted on a North American project. That is not a technicality or a paperwork formality — the two standards are built on different testing philosophies, and demonstrating compliance with one does not imply compliance with the other. Acceptance depends on the destination market, the project specification and the authority having jurisdiction (AHJ), not on any single certificate on its own.
For manufacturers, panel builders and distributors moving equipment between markets, this is one of the most expensive misunderstandings in LV procurement. It surfaces at inspection, after shipment, when it is far too late to fix cheaply. This guide sets out where the two standards actually diverge and what to confirm at enquiry stage rather than after delivery.
Buyer takeaway: IEC 60947-2 and UL 489 are separate standards used in different certification and installation contexts. Evidence under one standard should not be presented as proof of compliance with the other. Before ordering, confirm the project’s required standard and verify the exact breaker model, ratings, accessories and certification scope with the issuing body and the authority having jurisdiction (AHJ).
This list is a reading guide only. It does not replace a compliance determination for a specific project.
The difference is not that one is stricter than the other. It is that they ask different questions.
UL 489 evaluates the breaker as a standalone protective device. It asks: can this component, on its own, interrupt its rated fault current and protect the circuit it feeds? The assessment is component-level, built around worst-case test scenarios and a fixed verified interrupting rating.
IEC 60947-2 treats the breaker as part of a coordinated assembly. It asks: how does this device behave with the others around it? The standard defines graded performance levels — Icu and Ics — explicitly supports coordination studies, and leaves the engineer more freedom in configuring protection.
Hence the practical consequence: an IEC-based design is usually arrived at through a coordination study, whereas a UL-based design leans primarily on device-level certification.
The table below compares what each standard text requires. It describes the standards themselves, not the certification status of any particular product, and the figures quoted are indicative — confirm the applicable edition of each standard and the product nameplate for exact values.
| Criterion | IEC 60947-2 | UL 489 |
|---|---|---|
| Primary regions | Europe, Asia, Middle East, Latin America, Africa | USA and Canada (with CSA) |
| Voltage scope | Up to 1000 V AC / 1500 V DC | Up to 600 V AC (typical) |
| Breaking capacity concept | Graded: Icu (ultimate) and Ics (service, as % of Icu) | Single interrupting rating |
| Short-circuit test sequence | O–t–CO–t–CO | O–CO |
| Power factor at test | Lower power factor on high faults, giving higher peak asymmetrical current | Different test power factor assumption |
| Overload calibration | Stated tolerance on thermal trip | Calibration at defined multiples of rating |
| Short-time withstand | Icw defined explicitly, enabling Category B time selectivity | Series ratings via tested combinations |
| Ambient reference | Different temperature-rise reference conditions | Different reference conditions, which is why the same frame can carry a different rated current in each market |
| Marking | CE marking, IEC reference | UL listing mark and file number |
One consequence surprises buyers repeatedly: a breaker rated 100 A under IEC may carry a different rating under its UL listing, because the temperature-rise reference conditions differ. The nameplate is not wrong — it is two different answers to two different questions. When reading a dual-certified device, read each marking block separately and apply the one that governs your market.
IEC 60947-2 uses an O–t–CO–t–CO sequence: open, then a close-open, then another close-open, with time intervals between. UL 489 uses a single O–CO. That structural difference alone means the two tests do not produce interchangeable results.
The lower test power factor used in IEC testing for high fault currents also means higher peak asymmetrical currents, which is why some engineers regard the IEC test as the more severe one at the same RMS rating. Arguing about which is “harder” misses the point: neither certificate answers the other standard’s question, so equivalency arguments rarely survive an inspection.
The table below is an orientation aid only. It does not state what any market requires. What is actually required on a project is set by local law and regulation, the project specification, the authority having jurisdiction (AHJ), the consultant or owner requirements, and insurance conditions — and these can differ between projects in the same country. Confirm the applicable requirement for the specific project before procurement.
| Market | Standard commonly referenced | Note |
|---|---|---|
| USA / Canada | UL-based listing per project and AHJ requirements | Confirm with the authority having jurisdiction before procurement |
| European Union | IEC 60947-2 commonly referenced | CE marking is not a substitute for a North American listing |
| United Kingdom | IEC 60947-2 aligned product approval | Confirm current national requirements |
| Australia / New Zealand | IEC-aligned requirements | Confirm current national requirements |
| Middle East | IEC 60947-2 commonly referenced | Often with additional utility or consultant approvals |
| Latin America | Varies; IEC-dominant, some UL influence | Check per country and per project |
| China | GB 14048.2 (harmonised in structure with IEC 60947-2) | GB certification alone does not satisfy CE or UL requirements |

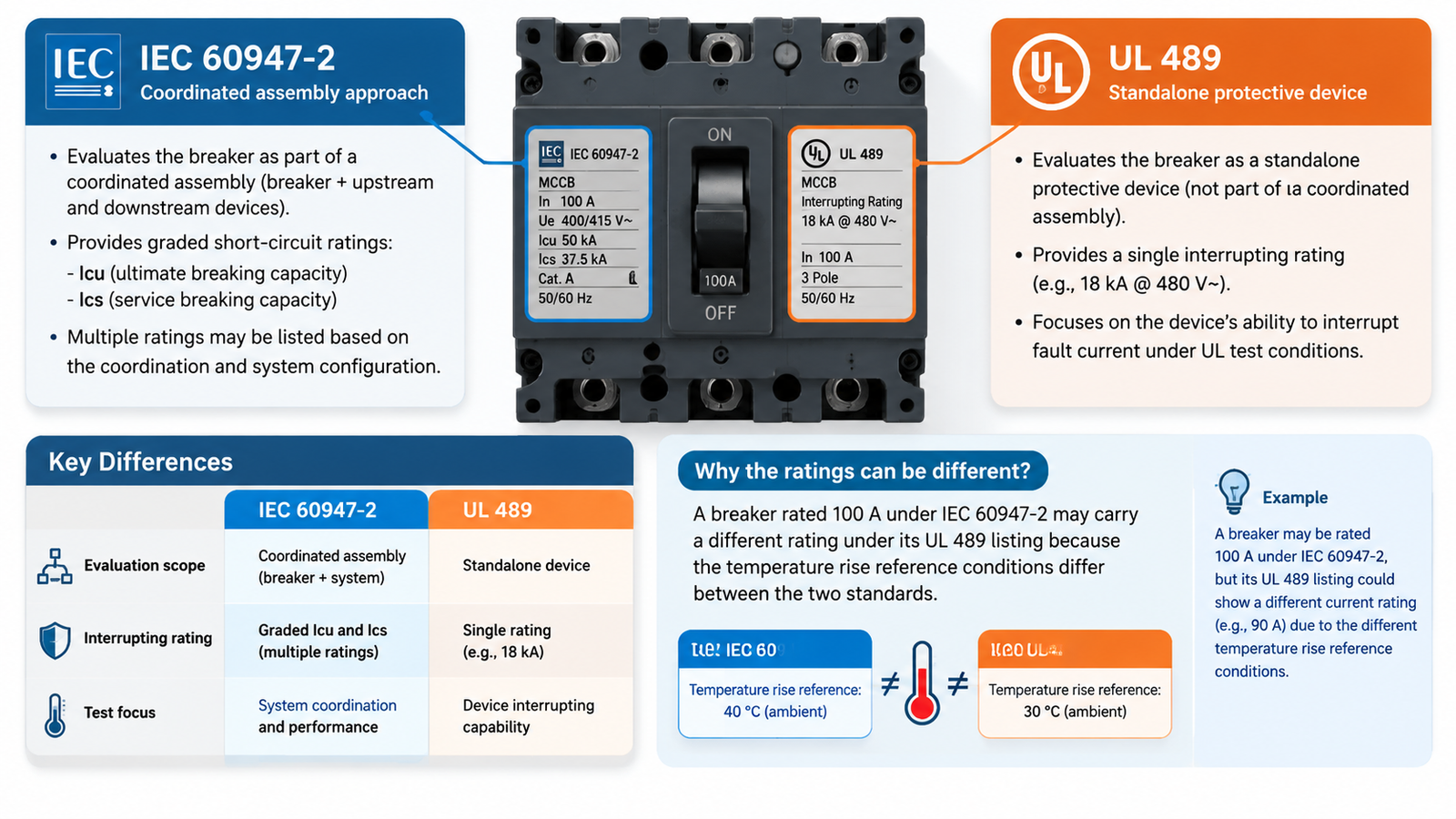

A certified MCCB nameplate is dense, and the fields you need differ depending on which regime governs your installation.
| Field | What to check on the IEC side | What to check on the UL side |
|---|---|---|
| Voltage | Rated operational voltage Ue, and rated insulation voltage Ui | Listed voltage — if lower than the IEC marking, the listed value governs North American use |
| Current | Rated current In at the stated ambient reference | Listed ampere rating, which may differ from the IEC figure at the same frame size |
| Breaking capacity | Icu and Ics, with Ics expressed as a percentage of Icu | Interrupting rating at the listed voltage |
| Utilisation / category | Utilisation category, and Icw where the device is Category B | Whether series ratings apply, and with which tested combinations |
| Frequency | 50/60 Hz rating — confirm 60 Hz coverage for 60 Hz markets | Listed frequency |
| Approval identity | CE marking plus the referenced IEC standard | UL listing mark and the file number |
Two fields are routinely skipped and routinely cause trouble. The first is frequency: a device type-tested at 50 Hz is not automatically covered for a 60 Hz market, and several export markets run 60 Hz. The second is Ics as a percentage of Icu — a device advertising a high Icu with a low Ics ratio is effectively a single-use device at high fault levels, which matters on any circuit expected to remain in service after a fault.
A breaker’s main type test certificate does not automatically cover the trip unit fitted to it. Electronic trip units can introduce additional requirements — accuracy, electromagnetic immunity, and behaviour under abnormal supply conditions — which may sit alongside the device documentation rather than inside it.
Whether the trip unit is documented together with the breaker or separately depends on the device and on the standard being applied, so ask how the fitted trip unit is covered rather than assuming it is included. Where a device communicates with a SCADA or BMS system, the project or the utility may also impose communication and cybersecurity requirements; treat those as project requirements to be confirmed, not as an automatic condition of the standard. If the trip unit is supplied or substituted separately from the breaker, treat its documentation as a separate line item and check that the combination is within the tested configuration.
Manufacturers serving both markets typically test to IEC 60947-2 first and then complete the separate UL evaluation. Some dielectric and endurance data may overlap, but interruption testing is not transferable between the regimes — each has its own procedures, marking rules and acceptance criteria. Dual certification reduces stocking complexity for global projects, but it adds cost and lead time, and it does not remove the need to read the nameplate carefully. Whether a particular manufacturer or model is dual certified has to be checked model by model against the actual certificate or listing; it is not a property of a product category.
The key rule for dual-certified devices: the IEC voltage marking and the UL voltage marking are not interchangeable. If a breaker is marked 690 V under IEC and a lower value under its UL listing, the lower listed value governs North American use.
Certification status can be checked independently rather than taken on trust. The standard itself is published by the IEC, and a North American listing can be verified through the listing organisation’s own records, for example UL Solutions circuit breaker services. Ask for the reference that lets you run that check instead of relying on a logo on a datasheet.
If the project specification is built around IEC 60947-2 and you want to review available configurations, the WZSMO molded case circuit breaker range sets out the frames and ratings we offer. Certification documents apply to the exact model and configuration ordered, so confirm the document scope with us for the specific ratings you are considering.
Sourcing MCCBs for an export project? Share the destination country, required standard, target model and ratings. Contact us to check which product documents are available for the exact configuration.
Not on the strength of IEC 60947-2 compliance alone. North American installations generally require a UL-based listing appropriate to the application, and the authority having jurisdiction makes the final determination. Confirm the required listing before procurement.
Because the two standards use different reference conditions — including different ambient and enclosure assumptions for temperature rise. A frame rated 100 A under IEC conditions may carry a different rating under its UL listing. Read each marking block separately and apply the one that governs your market.
No. CE marking addresses the requirements of the European Economic Area. It is not a substitute for a North American listing and will not satisfy a UL requirement.
Icu is the ultimate breaking capacity in the IEC framework, paired with Ics (service breaking capacity) expressed as a percentage of Icu. UL 489 uses a single interrupting rating concept. They are derived from different test sequences and cannot be directly substituted for one another. See our article on breaking capacity (Icu/Ics) for the IEC definitions.
It can. Certification is granted to a specific tested configuration. Field-fitted accessories, trip unit substitutions and changes outside the original test scope may fall outside the certificate. Check the listing scope before fitting anything not supplied with the device.

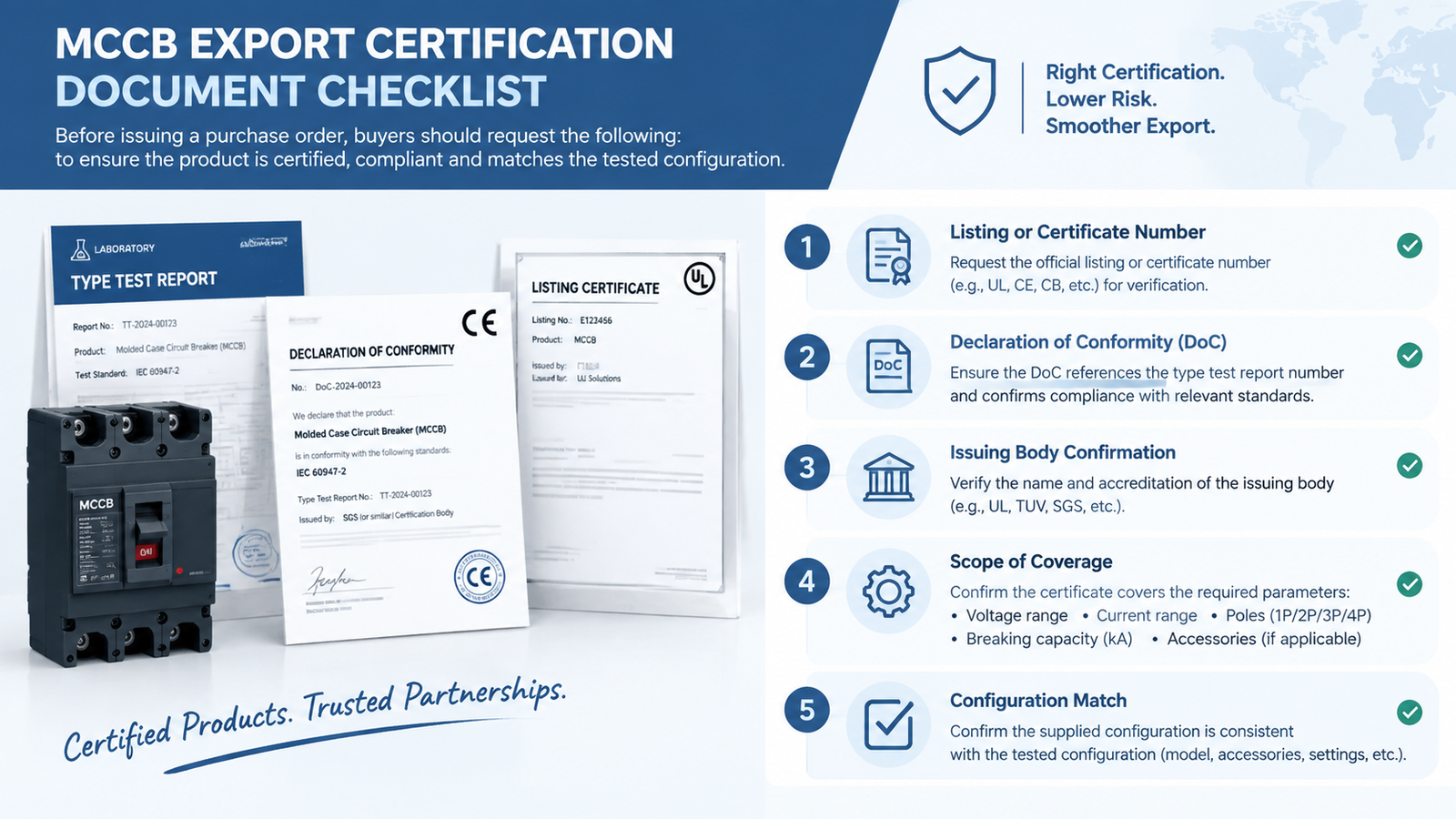

The listing or certificate number, a Declaration of Conformity referencing the type test report, the issuing body, and the exact scope of coverage — voltage, current range, poles, breaking capacity and accessories.
The cheapest moment to resolve standard compliance is when the enquiry goes out. At that point you can still ask for dual certification, still adjust the specification, and still align the EPC, insurer and local code requirements in a single review. After shipment, every option is expensive.
Sourcing MCCBs for a specific market? Tell us the destination and the applicable standard at the enquiry stage and we will tell you which documents are available for the exact model and configuration. Contact our engineering team to ask about available documentation.
