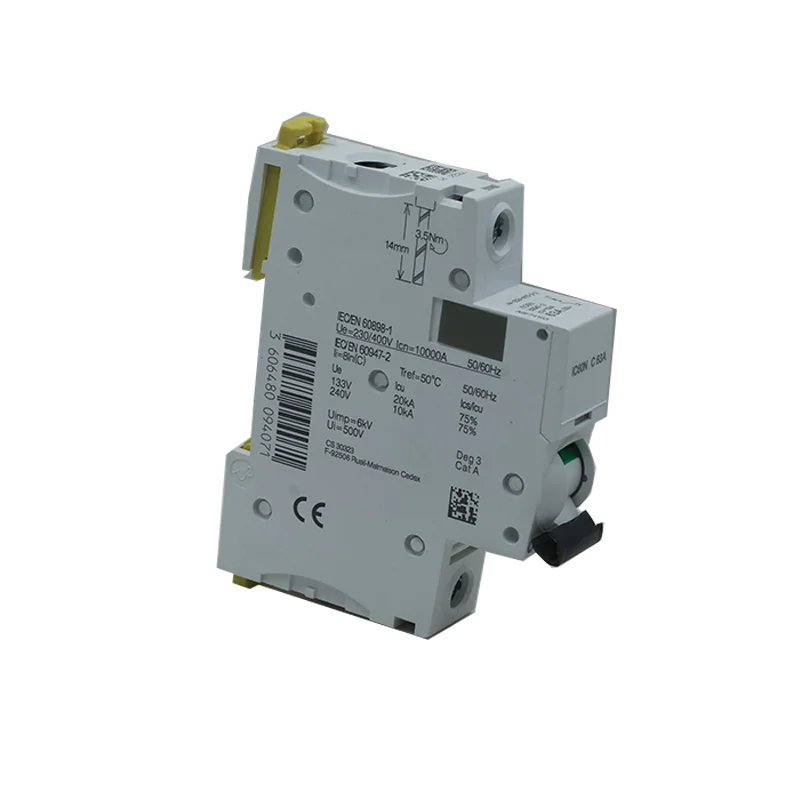

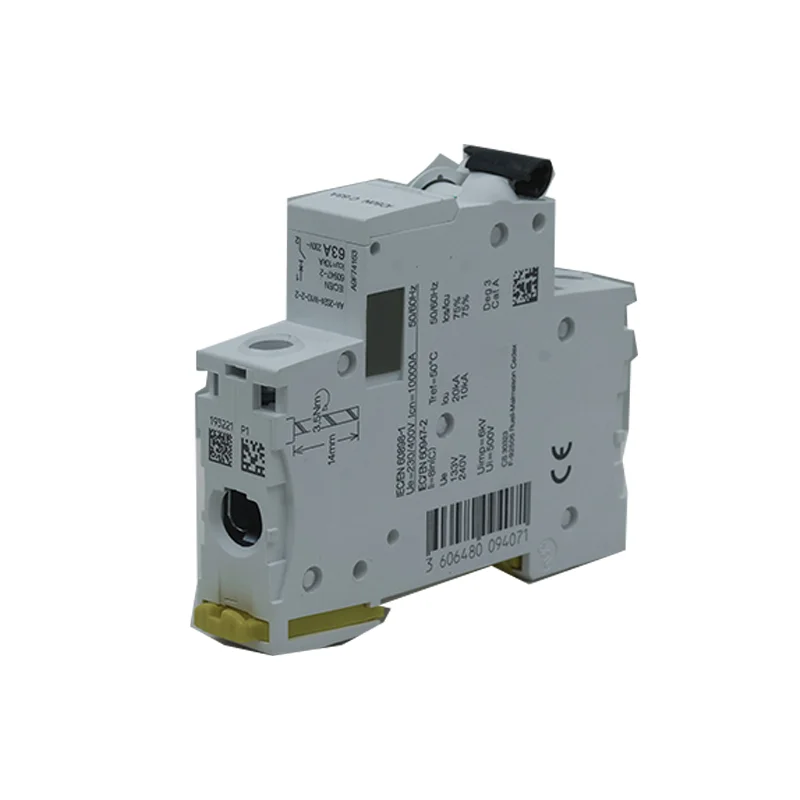

SiC60N MINIATURE CIRCUIT BREAKER (MCB)
SiC6ON Series is a high-performance miniature circuit breaker (MCB) designed for terminal power distribution protection. It is 100% tested before delivery and supports a wide range of optional accessories for functional expansion.
Specifications:
- Rated Current Range: 1A-63A
- Number of Poles: 1P/2P/3P/4P (customizable)
- Customizable Items: Rated current, pole count, tripping curve, silk screen, packaging
| Parameter Item | Standard Value |
| Item No. | SiC60N |
| Number of Poles | 1P/2P/3P/4P (customizable) |
| Control Type | Manual |
| Rated Current Range (In) | 1A-63A |
| Rated Insulation Voltage (Ui) | 500V AC |
| Rated Operational Voltage (Ue) | AC 50/60Hz, 230V/400V |
| Rated Breaking Capacity (Icn) at 230/400V AC | 6kA |
| Compliance Standard | IEC 60898-1, IEC 60947-2 |
| Customizable Options | Tripping curve, rated current, number of poles, silk screen, packaging |
