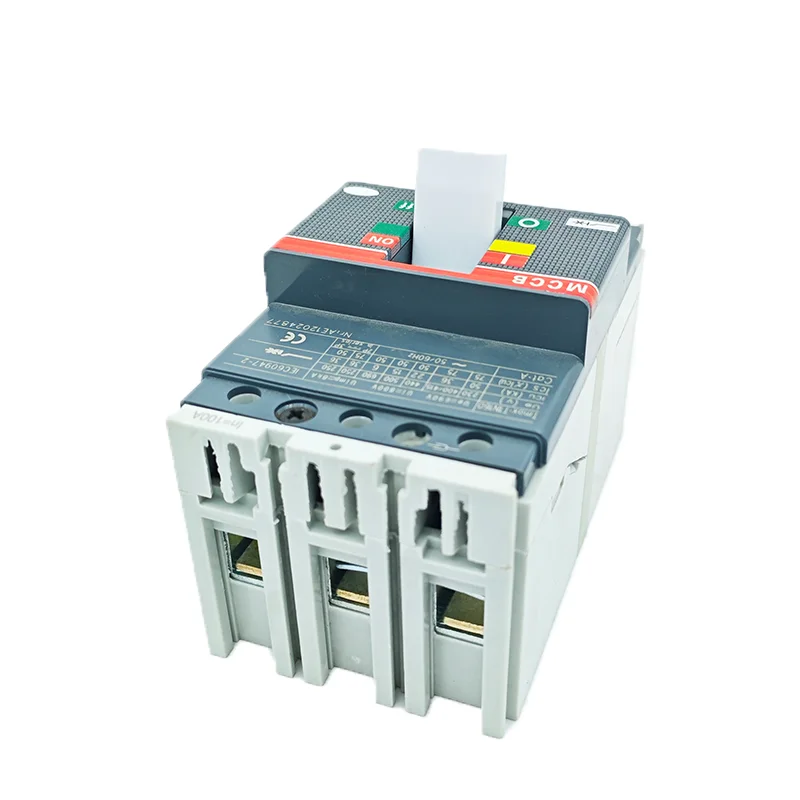

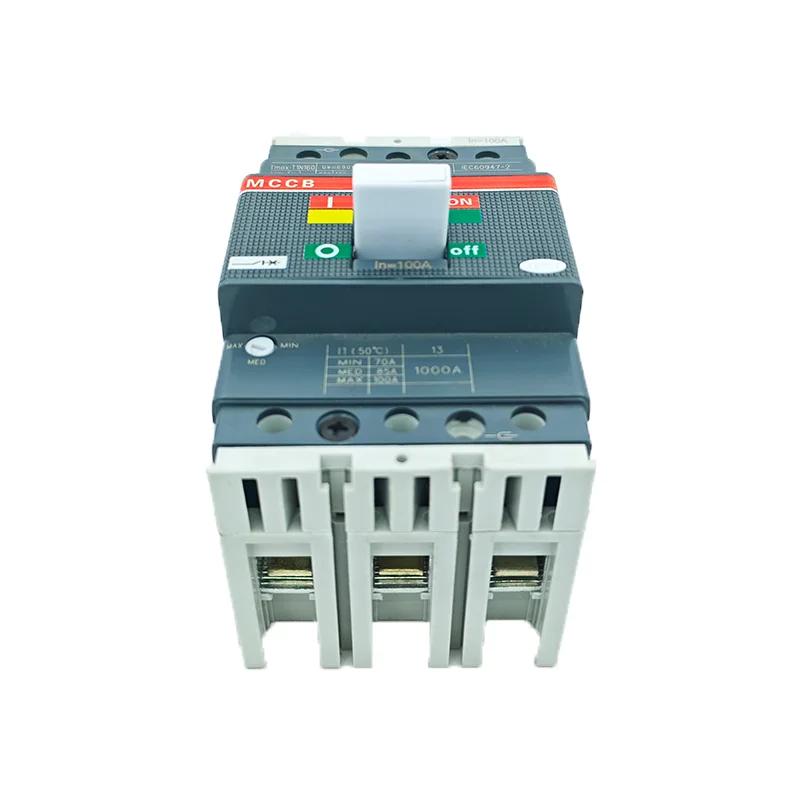

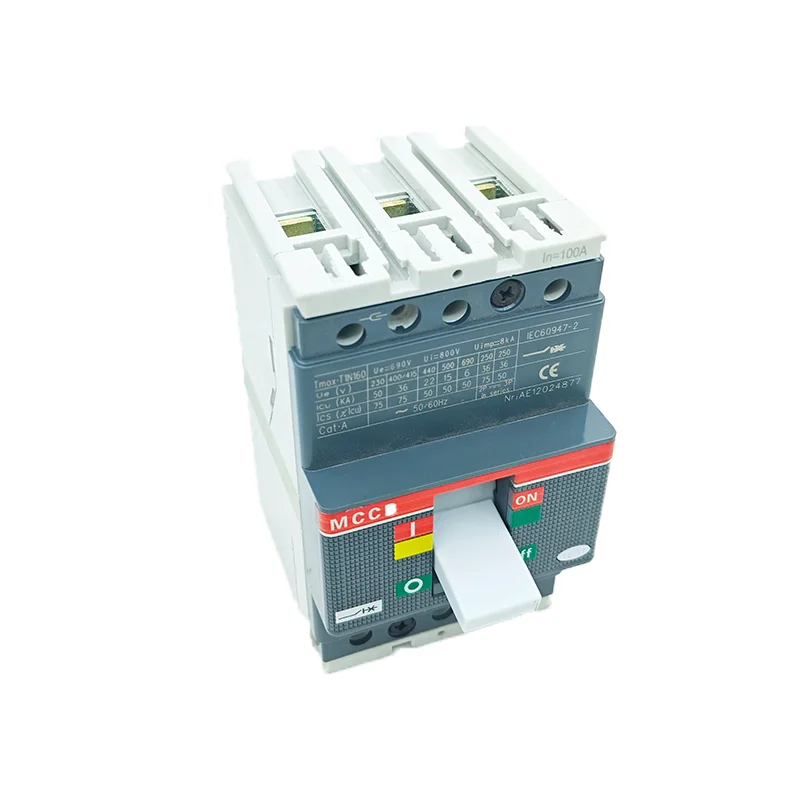

Description
The Stmax – T series molded case circuit breakers are high – performance electrical protection devices specifically designed for industrial and commercial power distribution systems. They are suitable for AC circuits with a frequency of 50/60Hz, with a maximum rated voltage of 690V AC and a rated current range from 10A to 630A. This series of circuit breakers integrates advanced arc – extinguishing technology and current – limiting functions, and is widely used in power distribution, motor protection, capacitor protection, and end – user equipment, providing reliable protection against overload, short – circuit, and undervoltage.
Core Performance Features
- Excellent Current – Limiting Ability
- The innovative arc – extinguishing system can cut off high short – circuit currents in an extremely short time (<1ms), significantly reducing the peak value of fault currents and minimizing the risk of equipment damage.
Modular Design and Flexible Configuration
- Supports 3P (three – pole) and 4P (four – pole) configurations to meet different power distribution requirements.
- Offers two types of trip units: thermal – magnetic (with fixed tripping characteristics) and electronic (with adjustable tripping curves), satisfying diverse application scenarios.
- Optional residual current operated circuit – breaker with overcurrent protection (RCBO) modules can be added to enhance the safety protection of people and equipment.
Compact Structure and High Reliability
- The compact design saves space in the power distribution cabinet and facilitates dense installation.
- The all – metal operating mechanism (independent of the housing for positioning) ensures long – term mechanical stability and anti – interference ability during operation.
- The housing is made of thermosetting materials, which have excellent high – temperature resistance and fire – proof performance, and will not melt or deform even at high temperatures.
Global Certification and Environmental Compliance
- Complies with international standards such as IEC 60947 – 2 and UL 489, and has obtained certifications from multiple countries such as CE, CCC, UL, and CSA.
- Uses halogen – free materials and environmentally friendly manufacturing processes, complying with RoHS and REACH regulations.
Typical Application Scenarios
- Industrial Field: Motor control centers (MCC), capacitor bank protection, production line power distribution.
- Commercial Buildings: Data center power distribution, elevator control systems, HVAC system protection.
- Infrastructure: Railway power supply systems, photovoltaic inverter protection, urban power grid renovation.
- Special Environments: Explosion – proof areas in chemical plants, offshore platforms, high – temperature and high – humidity industrial workshops.
Technical Parameters

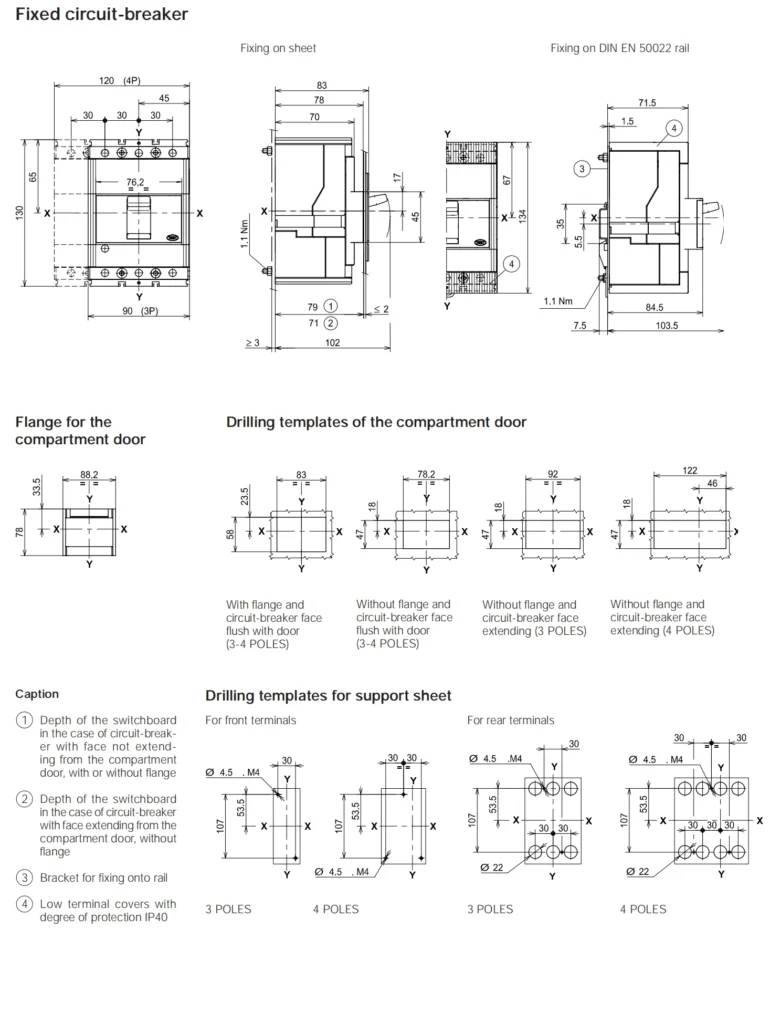

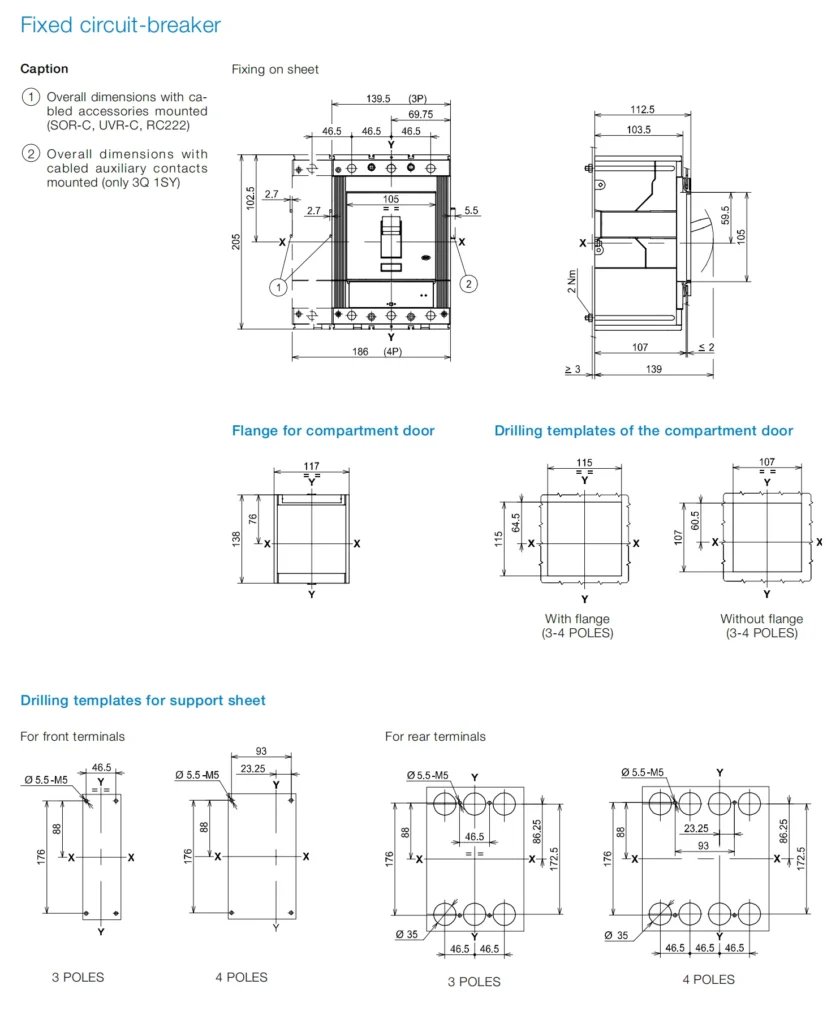

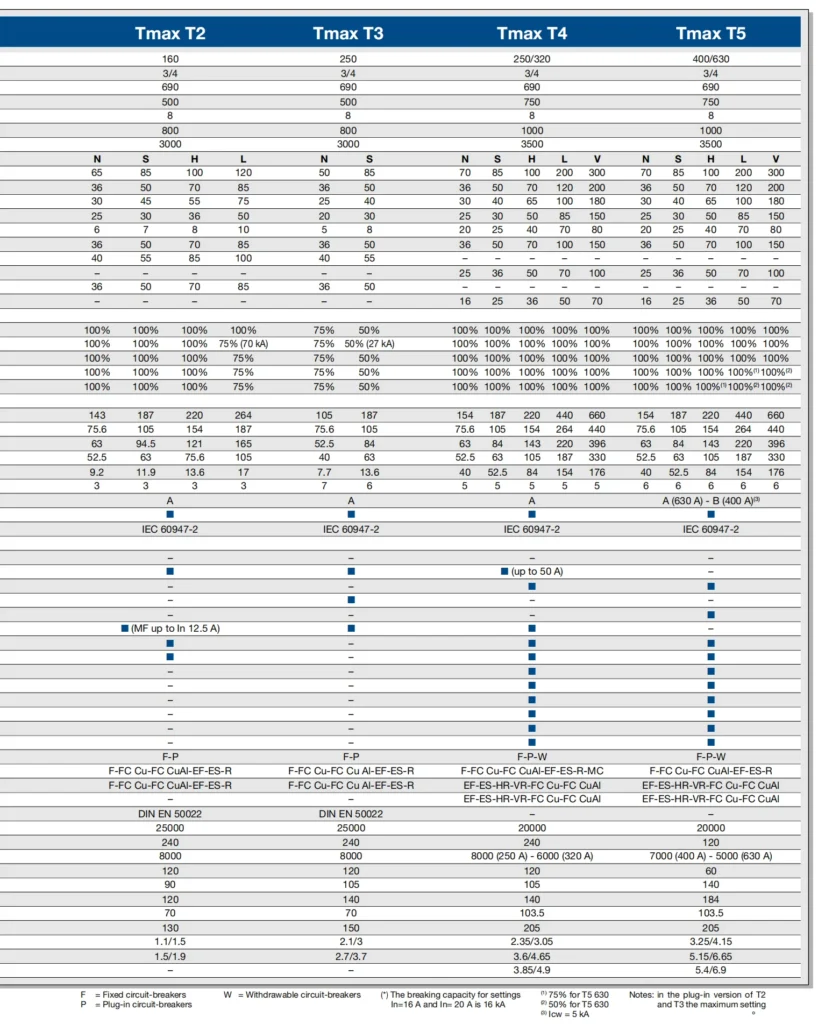

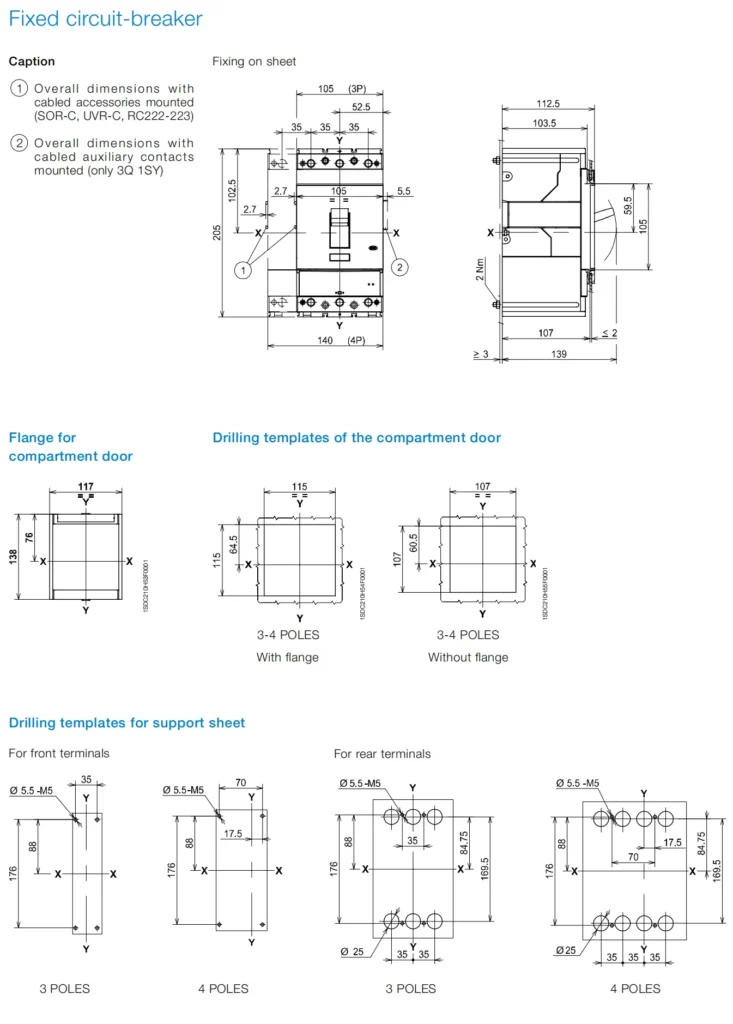

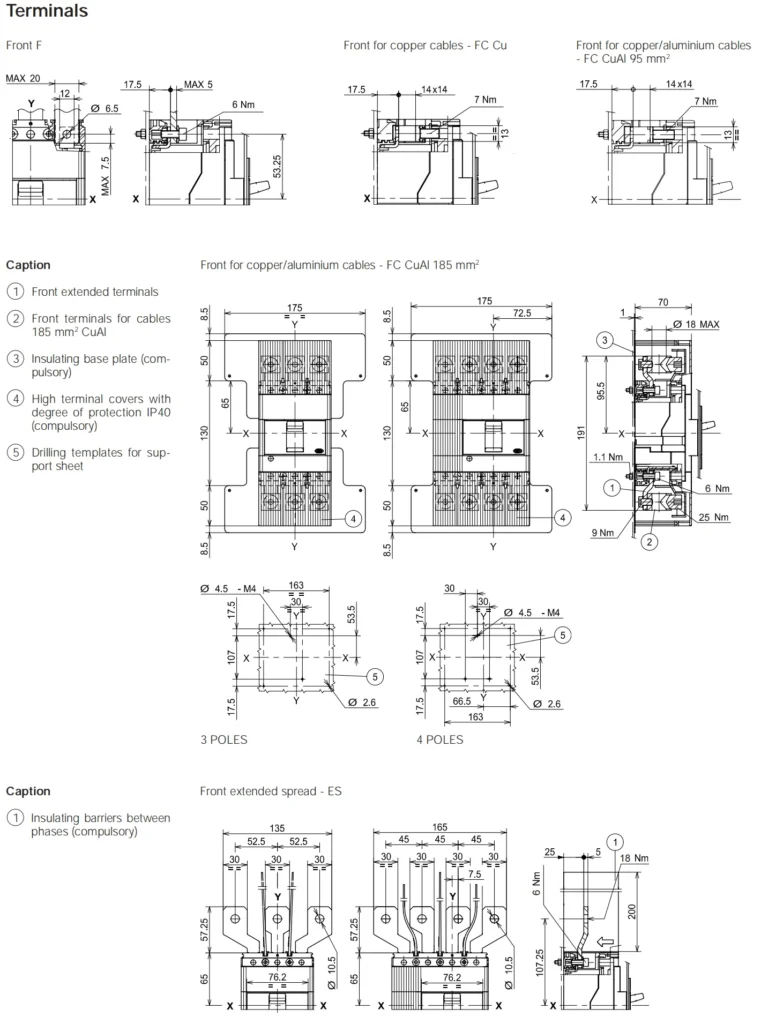

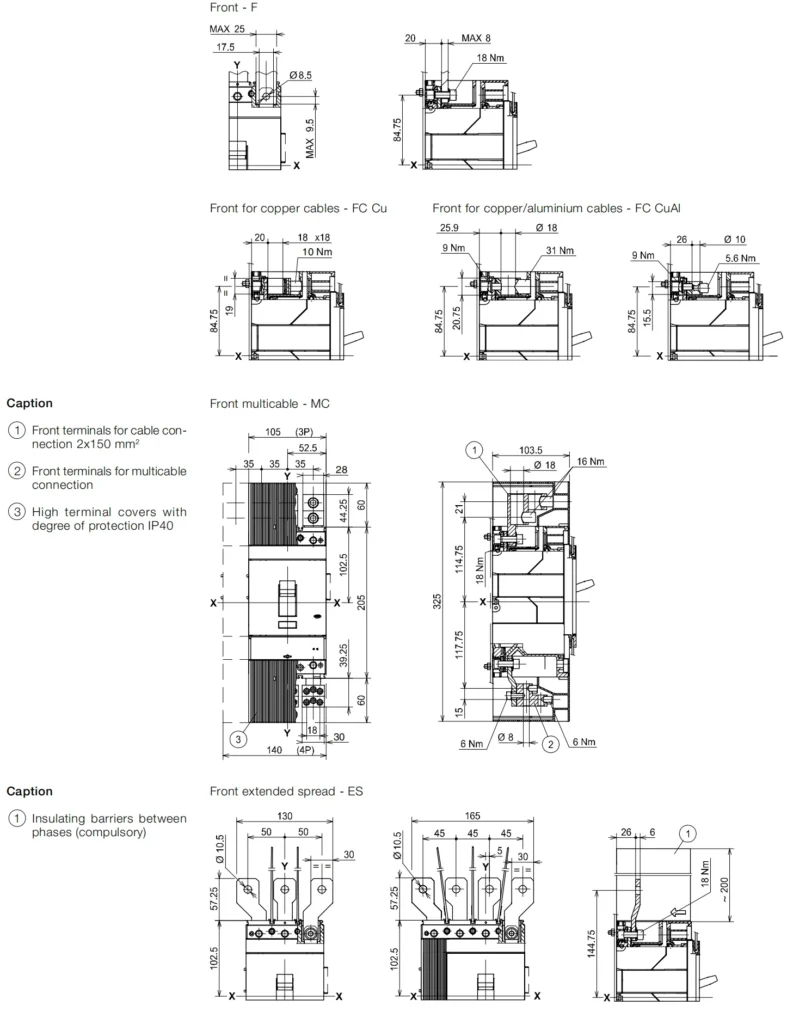

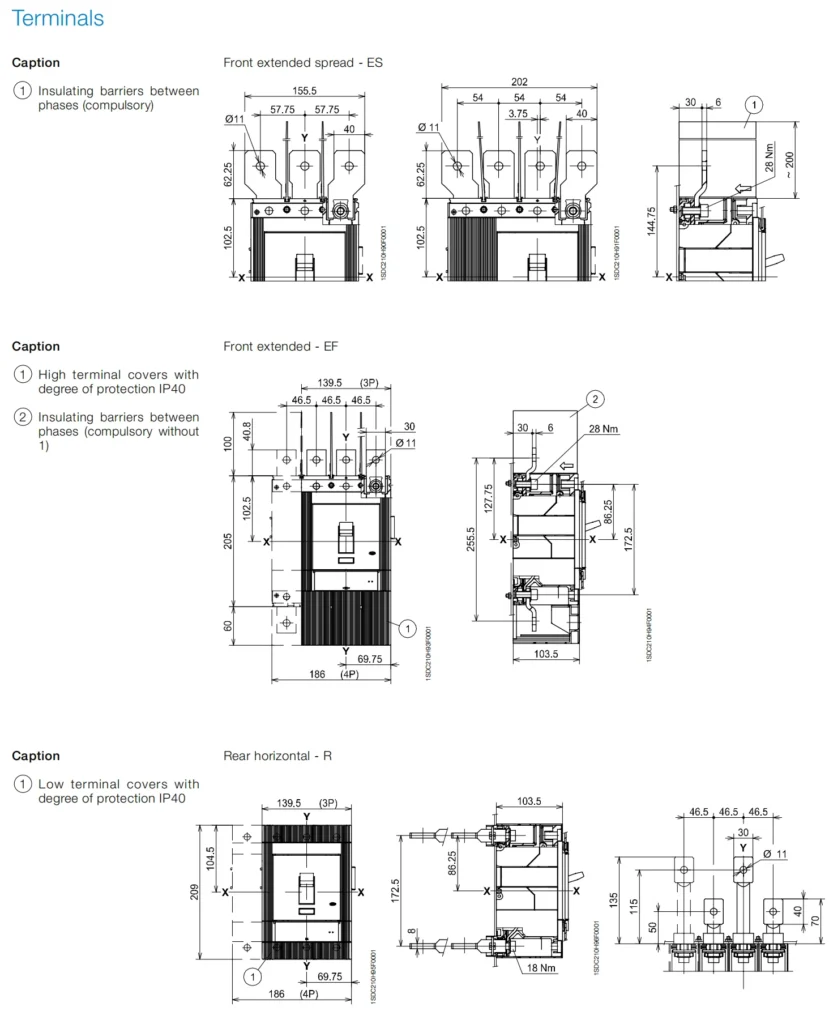

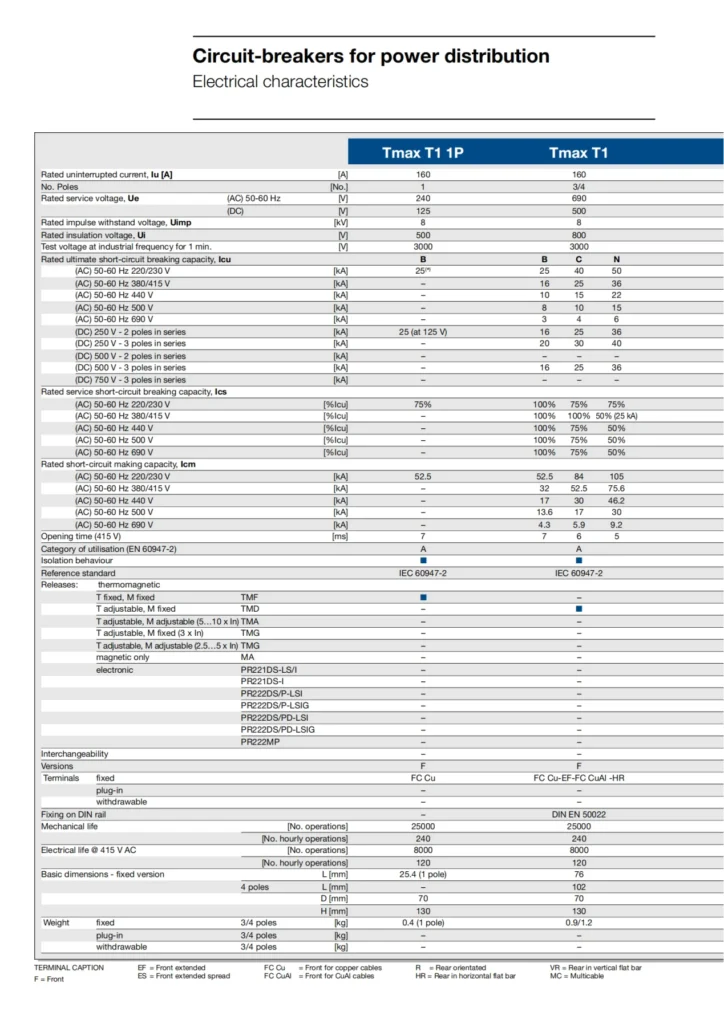

| Parameter | Specification |
| Rated Voltage (Ue) | 240V, 400V, 415V, 500V, 690V AC (50/60Hz) |
| Rated Current (In) | 10A to 630A (selectable in segments) |
| Insulation Voltage (Ui) | 800V or 1000V (standard/high – insulation type) |
| Impulse Withstand Voltage (Uimp) | 8kV |
| Trip Type | – Thermal – magnetic (B/C/D curves) – Electronic (adjustable long – time delay, instantaneous, short – time delay) |
